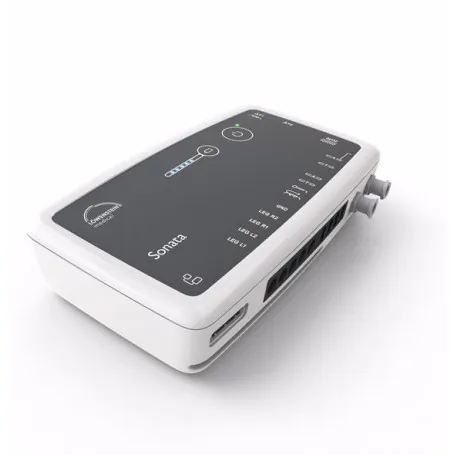

Löwenstein Sonata PSG: The Ultimate Solution for Sleep Apnea

1. Featured Description:

Lowenstein Sonata PSG is an advanced polysomnography solution for full sleep diagnosis in clinical and research settings. The new, adaptable, and future-proof sleep monitor boasts up to 76 recording channels, high sampling rates (up to 1kHz, 24-bit), and integrated WiFi connection for trouble-free data collection and analysis. Lowenstein Sonata PSG, with its adaptable sensor system, report customization, and real-time monitoring, offers high diagnostic accuracy in sleep disorders like obstructive sleep apnea (OSA), central sleep apnea (CSA), periodic limb movement disorder (PLMD), and Cheyne-Stokes respiration (CSR). The system is fully compatible with Lowenstein Medical’s prismaLINE sleep therapy devices for accurate titration and synchronized therapy adjustment.

Intended Use:

The Lowenstein Sonata PSG is designed for:

• Full sleep evaluations in the clinical environment
• Diagnosis of sleep-associated breathing disorders, ie, obstructive and central sleep apnea
• Detection of Cheyne-Stokes respiration, a sign of heart failure or neurologic illness
• Evaluation of periodic limb movements (PLMD) and other sleep disorders
• Real-time observation of respiratory effort, airflow, oxygen saturation, EEG, ECG, and muscle activity
• Coupling of CPAP/BiPAP therapy during titration studies

2. Core Features: Its Benefits for the Patient

1. Integrated WiFi & Uninterrupted Data Collection: The device offers seamless WiFi and cable switching, ensuring uninterrupted data recording.
2. Customizable Reports & Real-Time Data Monitoring: Fully configurable sleep study analysis reports, Live signal monitoring via the Sleep Xpert App, accessible on tablets for bedside calibration and real-time monitoring,Automated sleep apnea, PLMD, and arousal detection.
3. Seamless CPAP/BiPAP Integration with Digital Prisma Control (DPC): The Sonata PSG is integrated with Lowenstein Medical’s prismaLINE sleep therapy devices, providing real-time monitoring of CPAP/BiPAP settings. Monitoring therapy response with pressure, flow, and mask leakage measurements. Synchronized titration for maximum treatment results
4. Advanced Neuromodule 10-20 for EEG Analysis: The Neuromodule 10-20 meets international EEG standards, supporting advanced brain wave monitoring for neurological sleep disorders.
5. High-Quality Audio/Video Integration: Infrared network cameras night monitoring, Microphone, speaker, and day/night switching for observation. Silent pan/tilt cameras with optical zoom.
6. Portable & Future-Proof Design: The Lowenstein Sonata PSG features lightweight and compact design for easy setup battery operation with replacement standardized sensor connections for quick, error-free setup.

3. Specifications

Recording Channels:

• Up to 76 channels

EEG Monitoring:

• 6x standard EEG, expandable to 21 EEG (Neuro Module 10-20)

Additional Signals:

• EOG, EMG (chin & leg), ECG, actimeter, SpO2, pulse rate

Data Transmission:

• USB cable or WiFi connectivity

Sampling Rate:

• 1 Hz to 1000 Hz (24-bit resolution)

Recording Time:

• Up to 24 hours, depending on settings

Power Supply

• Rechargeable Li-ion battery with integrated charging

Dimensions:

• 30 mm x 77 mm x 135 mm (H x W x L)

Weight:

• 230 g (with Battery)

Storage Medium:

• Internal memory for data retention

Software:

• Sleep Xpert Lab & Sleep Xpert APP

4. FAQs

What is the Lowenstein Sonata PSG?

The Lowenstein Sonata PSG is a polysomnography system that captures brain activity, breathing patterns, muscle activity, oxygen saturation, and heart function for the diagnosis of sleep disorders.

May the system be used for CPAP/BiPAP titration?

Yes, the Lowenstein Sonata PSG accommodates Lowenstein prismaLINE CPAP/BiPAP devices for real-time monitoring of titration.

How does the system transfer data?

The Lowenstein Sonata PSG accommodates USB and WiFi data transfer, enabling immediate review of sleep data by clinicians.

May the Sonata PSG detect Cheyne-Stokes respiration?

Yes, the Lowenstein Sonata PSG  detects Cheyne-Stokes breathing patterns, which are characteristic of heart failure or central sleep apnea.

How is the Neuromodule 10-20 beneficial in sleep studies?

The Neuromodule 10-20 improves EEG data recording, enabling accurate brain activity analysis for neurological sleep disorders.

What are the video monitoring features?

The system contains infrared network cameras with microphones and speakers, enabling high-quality observation of patients during sleep studies.

Is the Sonata PSG future-proof?

Yes, the device accommodates firmware update, modular expansion, and simple integration with new technology features, ensuring prolonged use.

5. What’s Included

• Lowenstein Sonata PSG Recorder Unit
• Neuromodule 10-20 for EEG Monitoring
• USB Data Cable & Charging Adapter
• WiFi Connectivity Module
• ECG, EMG, and EEG Electrodes
• Respiratory Effort Sensors (Thorax & Abdomen)
• Nasal Cannula & Thermistor for Airflow Measurement
• SpO2 Finger Sensor for Oxygen Monitoring
• Actimeter for Body Movement Analysis
• Sleep Xpert Lab & Sleep Xpert App Software
• Infrared Camera for Video Monitoring
• Rechargeable Battery & Carry Case
